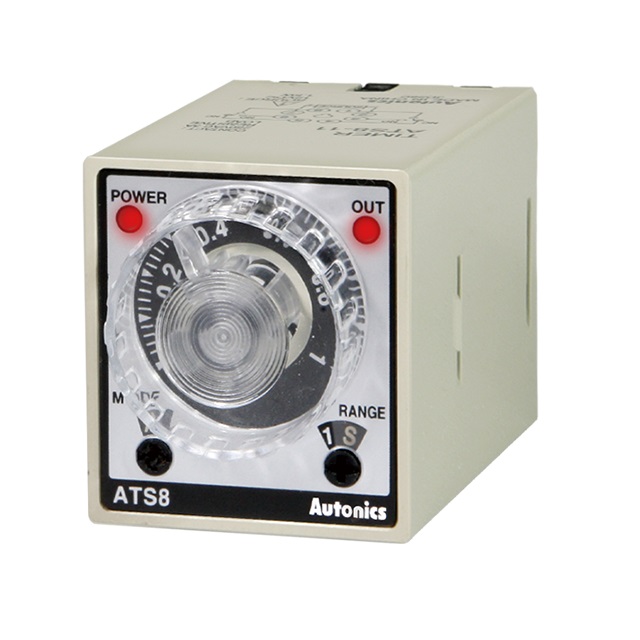

Autonics (ATS8-41) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC) Contact for price

Model: ATS8-41

Operation method Time setting
Output Operation POWER ON DELAY, FLICKER, INTERVAL
Time operation POWER ON START
Terminal 8-pin plug
Power supply 100-240VAC~50/60Hz, 24-240VDC
Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
Dimension W38 x H42 mm
Accessories Bracket
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH
Weight Approx. 95g (approx. 70g)



Categories: ,

Description

  • Socket (8-pin socket) not included.
  • Refer to time specifications for control time setting range by model.
  • The weight in parenthesis is for unit only.
  • The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.

Dimensions

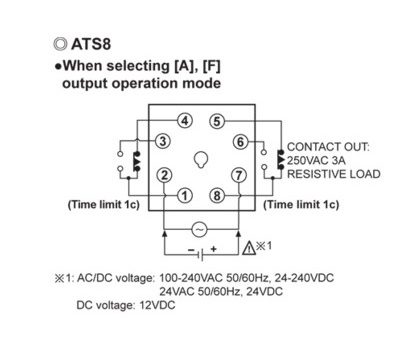

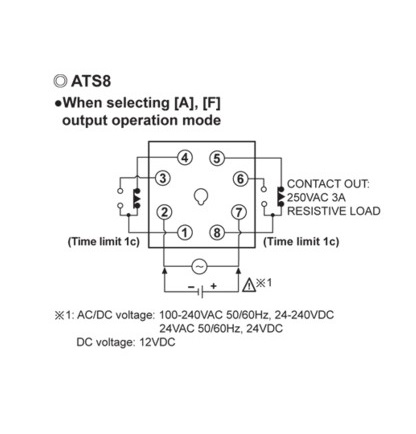

Connection
