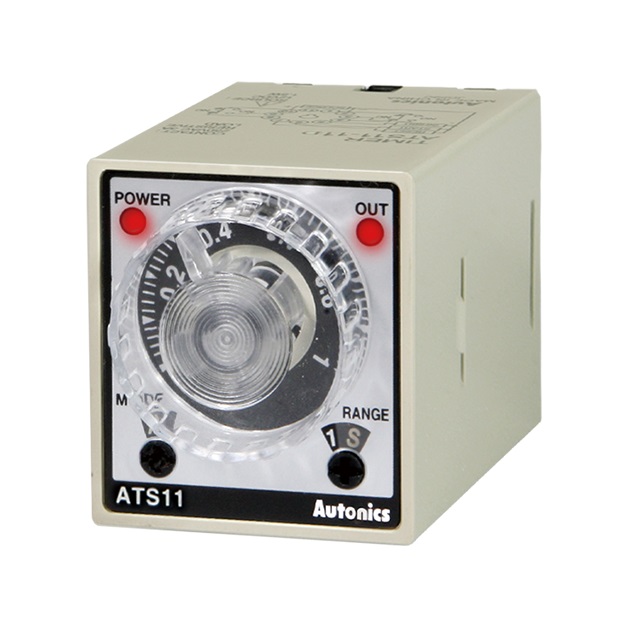

Autonics (ATS11-41D) Analogue Timer 11-pin (100-240 VAC, 24-240 VDC) Contact for price
Model:ATS11-41D
| Operation method | Time setting |
|---|---|
| Output Operation | SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL |
| Time operation | SIGNAL ON START |
| Terminal | 11-pin plug |
| Power supply | 100-240VAC~50/60Hz, 24-240VDC |
| Setting range | 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour |
| Signal Input Method | No-voltage input(NPN) |
| Control output | Time-limit SPDT (1c): 2 |
| Dimension | W38 x H42 mm |
| Min. signal Width | START, INHIBIT, RESET: [No-voltage input] – Short-circuit impedance: Max. 1kΩ, Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ |
| Accessories | Bracket |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH |
| Weight | Approx. 95g (approx. 70g) |
- Description
- Reviews (0)
Description
- Socket (11-pin socket) not included.
- Refer to time specifications for control time setting range by model.
- The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
Dimension
