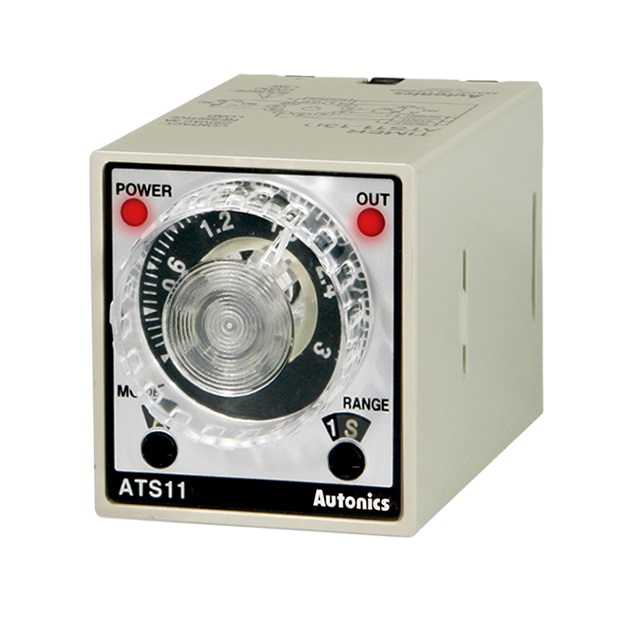

Autonics (ATS11-13D) Analogue Timer 11-pin (12 VDC) Contact for price

Model:ATS11-13D

Operation method Time setting
Output Operation SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
Time operation SIGNAL ON START
Terminal 11-pin plug
Power supply 12VDC
Setting range 0.3 to 3 sec, 3 to 30 sec, 0.3 to 3 min, 3 to 30 min, 0.3 to 3 hour, 3 to 30 hour
Signal Input Method No-voltage input(NPN)
Control output Time-limit SPDT (1c): 2
Dimension W38 x H42 mm
Min. signal Width START, INHIBIT, RESET: [No-voltage input] – Short-circuit impedance: Max. 1kΩ,
Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ
Accessories Bracket
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH
Weight Approx. 95g (approx. 70g)



Categories: ,

Description

  • Socket (11-pin socket) not included.
  • Refer to time specifications for control time setting range by model.
  • The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.

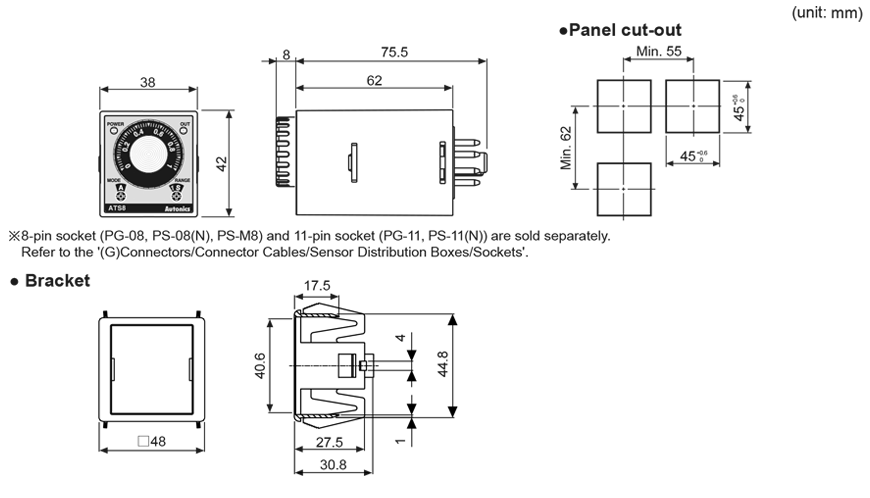

Dimension

Autonics, ATS Series
