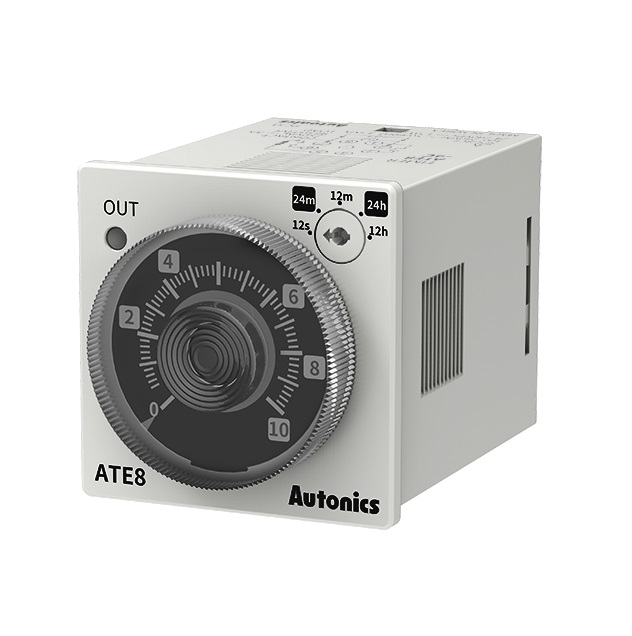

Autonics (ATE8-41) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC) Contact for price

Model:ATE8-41

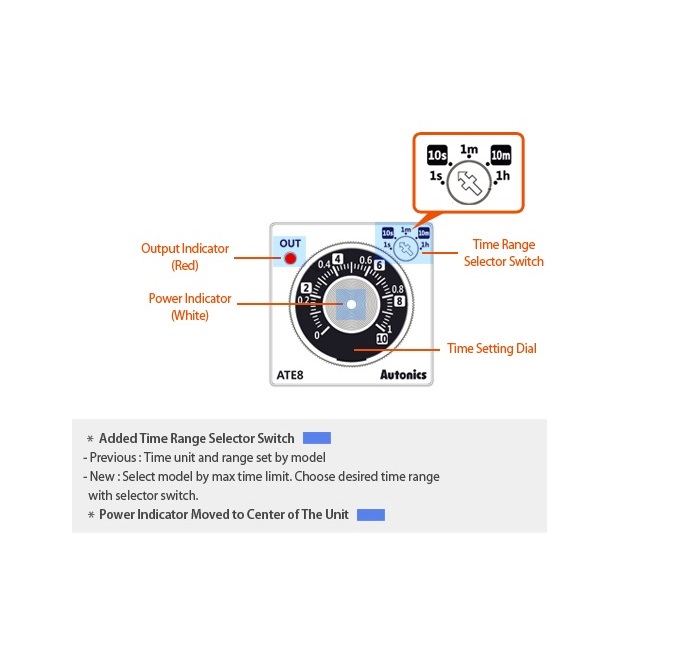

Operation method Time setting
Output Operation POWER ON DELAY
Time operation POWER ON START
Terminal 8-pin plug
Power supply 100-240VAC~50/60Hz, 24-240VDC
Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour
Control output Time-limit SPDT (1c): 1, Instantaneous SPST (1a): 1
Protection structure IP40(front panel)
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH
Weight Approx. 122.2g(Approx. 75g)
